Wide Compatibility with Substrates Offers More Creativity

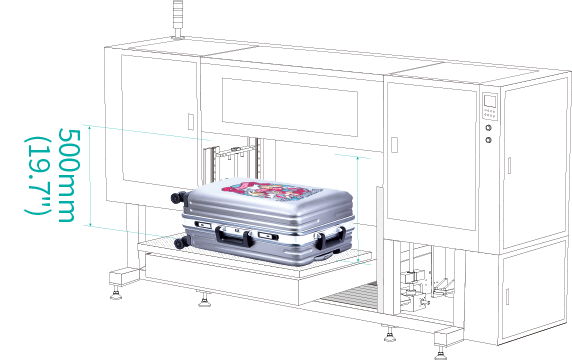

The TDL1161 EH printer owns the ability to directly print on various substrates up to 500mm (19.7") thick, such as suitcases and corrugated boxes. Thanks to the patented full adjustable height technology of the flatbed and UV-LED curing technology, TDL1161 EH enables outstanding flexibility on one device at a fraction of cost and time, bringing you competitive advantages in custom items and displays.

Digital Varnish Printing Creates Special Tactile and Visual Effects

Varnish printing provides a variety of surface finishes with attractive tactile and visual effects. The overall media can be covered with a gloss/ matte finish; or glossy/ matte spot varnish can be added to some specified appealing parts. Various types of patterns are embedded in the Print Production Watermark (PPW) software for digital varnish printing. Logos can be also printed out as varnish watermarks.


Logos as Varnish Watermarks	Surface Finishes with PPW Patterns	Some Patterns in the PPW Software

Template Printing Means High Volumes and Short Lead Time

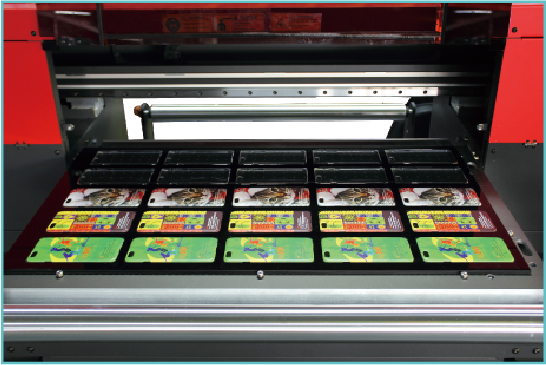

The TDL series printer is an ideal solution for printing multiple small-sized objects simultaneously, even with different artworks. The fixture can be placed on the flatbed table to quickly position small-sized objects. The ColorPRINT RIP software allows to customize “template” according to the fixture and define each image. The real-time preview achieves what you see is what you print.


Custom Template	Template Printing

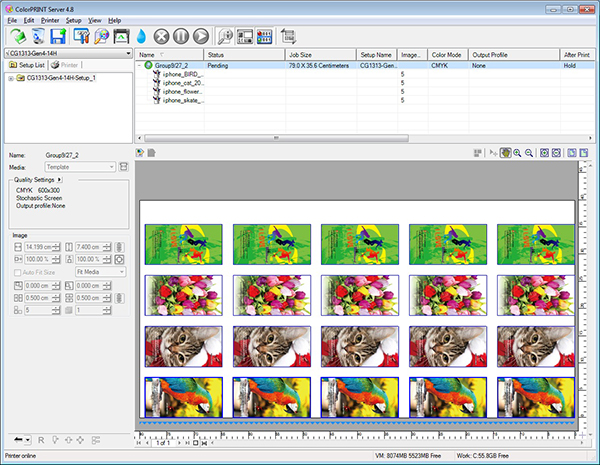

Professional ColorPRINT RIP Software

Working seamlessly with the professional ColorPRINT RIP software, TDL series produces vivid colors and fine details with enhanced color management and state-of-the-art raster image process technology. CosmoInkjet's VDS (Variable Droplet Size) control technology integrates the print head control of 3-level different droplet sizes with the ColorPRINT RIP software for producing sharp images with smoother gradients.

ColorPRINT RIP Software

Different Color Configurations Match Versatile Applications

Color Configurations	Benefits
	6 color inks including specialty inks offer a wide color gamut and accurately reproduce even the most difficult colors. Specialty ink colors also well match corporate logos and recognizing colors.
	Directly prints on transparent and colored substrates. Brilliant and vivid image colors are displayed due to white ink layer under the image.
	The Primer can be printed with CMYK (SP1 SP2) inks in one run and offers better ink adhesion on different materials.
	The Varnish can be printed with CMYK (SP1 SP2) inks simultaneously. Images will look more attractive by printing the Varnish layer.
	The White ink and Varnish can be printed with CMYK (SP1 SP2) inks for special market application.

Superior White Ink Printing Expands Capabilities and Business

Printing with high density white inks, the TDL series printer offers bright and vivid colors on transparent and colored media. Thanks to the white ink circulation system, TDL series easily keeps the white ink properly mixed for solid covering and coloration.

	Under-Printing	Over-Printing
Print white ink at the area of job
Print white ink at the area of image
Print white ink and color inks individually

Features

	User friendly color LCD Smart Panel provides printer status information and offline printer control.
	Automatic Ink Supply System monitors and controls the ink levels of main/ sub ink tanks with liquid level sensors, alarming for ink shortage or overflows.

	The all-in-one Print Head Maintenance Module allows automatic purging, wiping and capping for unattended operation.
	An Active Negative Pressure System ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print head.

		TDL1161 EH/ TDL1060
Print Head Model		MH5420
Number of Heads		2	3
Colors		CMYK	WW + CMYK
Productivity Unit: m2/ hr. (ft2/ hr.)	1200 × 600dpi，4 pass	25.3 (272)	22.8 (245)
	1200 × 900dpi，6 pass	17.5 (188)	16.2 (174)
	1200 × 600dpi，8 pass	14.1 (152)	12.7 (137)

	TDL1161 EH	TDL1060
Table Size (W × D)	1100mm × 610mm (43.3" × 24.0")	1060mm × 610mm (41.7" × 24.0")
Max. Printing Zone Size (W × D)	1100mm × 610mm (43.3" × 24.0")	1060mm × 610mm (41.7" × 24.0")
Max. Media Thickness	500mm (19.7")	150mm (5.9")
Dimensions (W × D × H)	2633mm × 1474mm × 1705mm (103.7" × 58.0" × 67.1")	2525mm × 1474mm × 1537mm (99.4" × 58.0" × 60.5")

TDL1161 EH/ TDL1060 UV-LED Flatbed Inkjet Printer
