Ideal Choice for Taper/ Cylinder Printing

Compared with traditional taper/ cylinder printing, like pad printing, screen printing and label printing, TBC/ TB printers have prominent advantages in being free from plates, fast warm-up, short turnaround time, as well as customized printing.

Also superior to digital thermal transfer printers, TBC/ TB printers own more simplified workflow, easier operation and lower cost.

TBC/ TB printers are specialized in producing smooth gradients and vivid images on tapers/ cylinders, not being achieved with other printing technologies.

Advanced Technologies for Extraordinary Print Quality and Efficiency

Thanks to the Rotational Print Pass Method (RPPM) and Special Print Head Arrangement Method for taper/ cylinder printing, TBC/ TB printers are endowed with amazing print speeds and quality.

The Ink Droplet Compensation Algorithm is specially developed for taper printing, ensuring even image density on different diameter sections of the taper and avoiding image deformation.

When printing the same text, graphic or image onto cylinders of different diameters, the Ink Droplet Conversion Algorithm realizes consistent resolutions and stable visual effects, ideal for printing bottle/ cup sets with identical patterns and colors but in different sizes.

Combining special algorithms with real-time monitoring and feedback, TBC/ TB printers effectively eliminate gaps or overlaps of images in 360° seamless printing.

Flexible Color Configurations Meet Different Applications

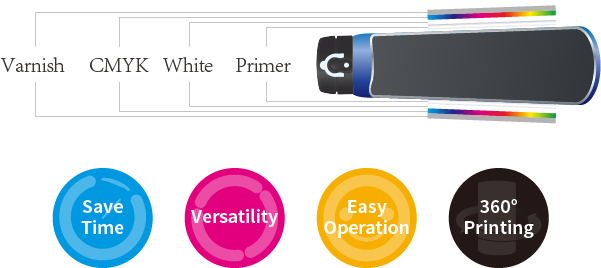

TBC/ TB printers support printing Varnish for varied surface decorations of attractive tactile or visual effects; printing Primer for enhanced adhesion on different materials; and specialty ink colors for matching corporate logos and recognizing colors.

The White Ink Circulation System keeps the White ink properly mixed for solid covering and coloration. Combined with proven color management technology, TBC/ TB printers easily achieve durable, vivid and bright colors on colored or black tapers/ cylinders.

Variable Data Printing Builds Personalized Applications

TBC/ TB printers support colorful variable data printing, including texts, numbers, time, serial numbers, QR codes, etc. TBC/ TB printers help you create added value applications and obtain more business opportunities for personalized packaging, promotional items or product decoration printing.

ColorPRINT Bottle RIP Software

Intuitive main interface with 2D/ 3D preview
Basic parameters can be set in one view
ICC color management
Object template to define print locations
Automatic white ink background choke

Printer Control Software (PCS)

Interactively controls the printer, monitors printer status, and sets printer options
Sends job control commands to print, abort, pause, resume or reset
Check Nozzle Circular; Horizontal Calibration
Z-axis Height Control
No/ Transparent Bottle Detection; Collision Control

Template Connector with Adjustable Angles

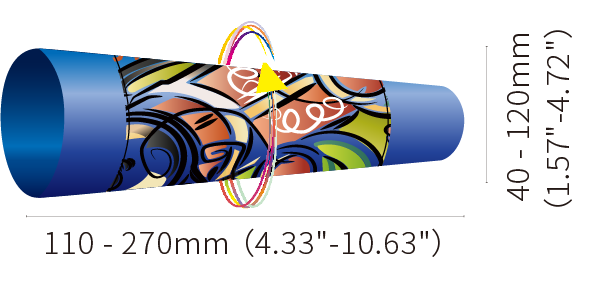

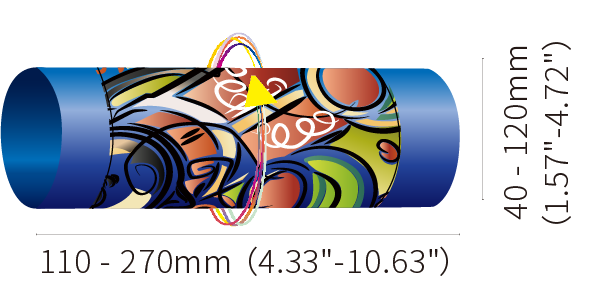

The maximum printing length of TBC/ TB printers is 220mm; they allow to print onto objects of 40-120mm in diameter and 110-270mm in length.
With standard connector available, operators are free to install corresponding templates according to specific shapes, dimensions or structures of their printed objects to achieve accurate position and tightly fastening, ensuring stable high-speed rotation and quick loading/ unloading.
Equipped with the angle adjustment device, it becomes easier to obtain the horizontal printing position. TBC/ TB printers will lead you to high quality final color prints, including trendy tapered open cups, neat cylindrical thermos bottles and tapers/ cylinders with threaded caps or not.

TBC	TBC/ TB

Highlights

Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation.

Positioning Sensors indicate the position of the print object and enable to quickly set the printing area, achieving efficient and precise printing.

Automatic Print Head Protection System monitors whether the print heads will be scratched or exposed to UV lights, and immediately stops the movement of the carriage in case of the emergency situations,effectively ensuring the safety of print heads.

<ul id="22iq2"></ul>

<strike id="22iq2"><rt id="22iq2"></rt></strike><ul id="22iq2"></ul>

<fieldset id="22iq2"></fieldset>

Printer Model		TBC	TB
Printed Object	Shape	Taper/ Cylinder	Cylinder
	Size	Length: 110 - 270mm (4.33" - 10.63") Top diameter: 40 - 120mm (1.57" - 4.72") Bottom diameter: 40 - 120mm (1.57" - 4.72")	Length: 110 - 270mm (4.33" - 10.63") Diameter: 40 - 120mm (1.57" - 4.72")
Rotary Degree of Object		360°
Printable Size		Feeding direction (R-axis): entire surface of the objects Print head moving direction (Y-axis): within 220mm
Printer Dimensions (W × D × H)		1373mm × 670mm × 1654mm (54.1" × 26.4" × 65.1")

Bottle Diameter	Image Size	Print Resolution	Color	Productivity
				Production Mode	Quality Mode
70mm (2.76")	60mm × 219.8mm (2.36" × 8.65")	600 × 900dpi	CMYK	16 sec.	23 sec.
			CMYK + W	20 sec.	28 sec.
			CMYK + W + V	26 sec.	39 sec.
	100mm × 219.8mm (3.94" × 8.65")	600 × 900dpi	CMYK	22 sec.	34 sec.
			CMYK + W	28 sec.	41 sec.
			CMYK + W + V	37 sec.	58 sec.

TBC/ TB Industrial Inkjet Printer for 360° Seamless Taper/ Cylinder Printing
