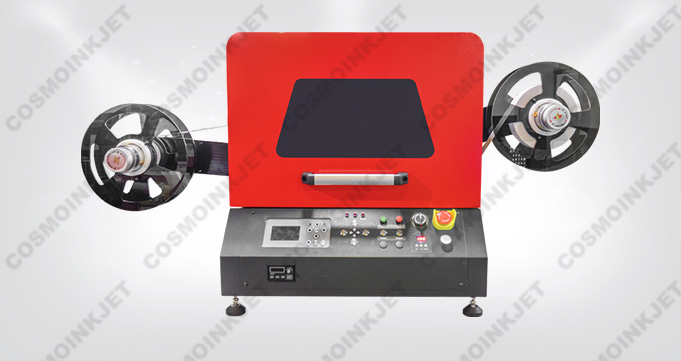

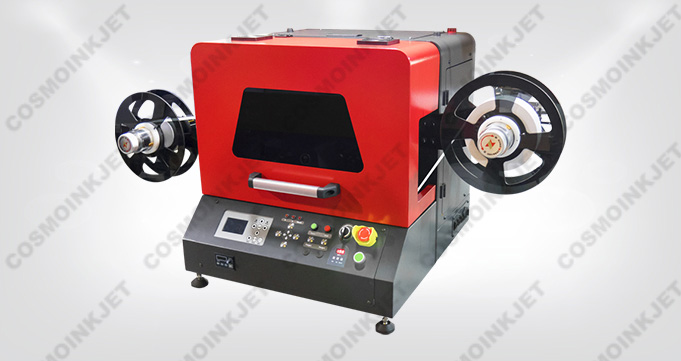

LZ 54/ 75/ 108 INDUSTRIAL UV-LED WEB INKJET PRINTER

Ideal Alternative to Small Water-based & Thermal Transfer Label Printers

LZ Series is an innovative narrow-format UV-LED web inkjet printer specifically designed for industrial short-run digital printing. As AMICA's new development to the label and hang tag inkjet printing market, it brings out exquisite print quality, superior productivity and great flexibility.

Based on highly modular design concept, LZ series can be configured with versatile post-printing modules, such as cutters/ dotting cutters, rewinders, detachers, die cutting or cross-cutting. It is widely applied in logistics, retail, industrial manufacturing, clothing, and pharmaceuticals industries.

LZ54/ 75/ 108
LZ54/ 75/ 108
LZ54/ 75/ 108
LZ54/ 75/ 108

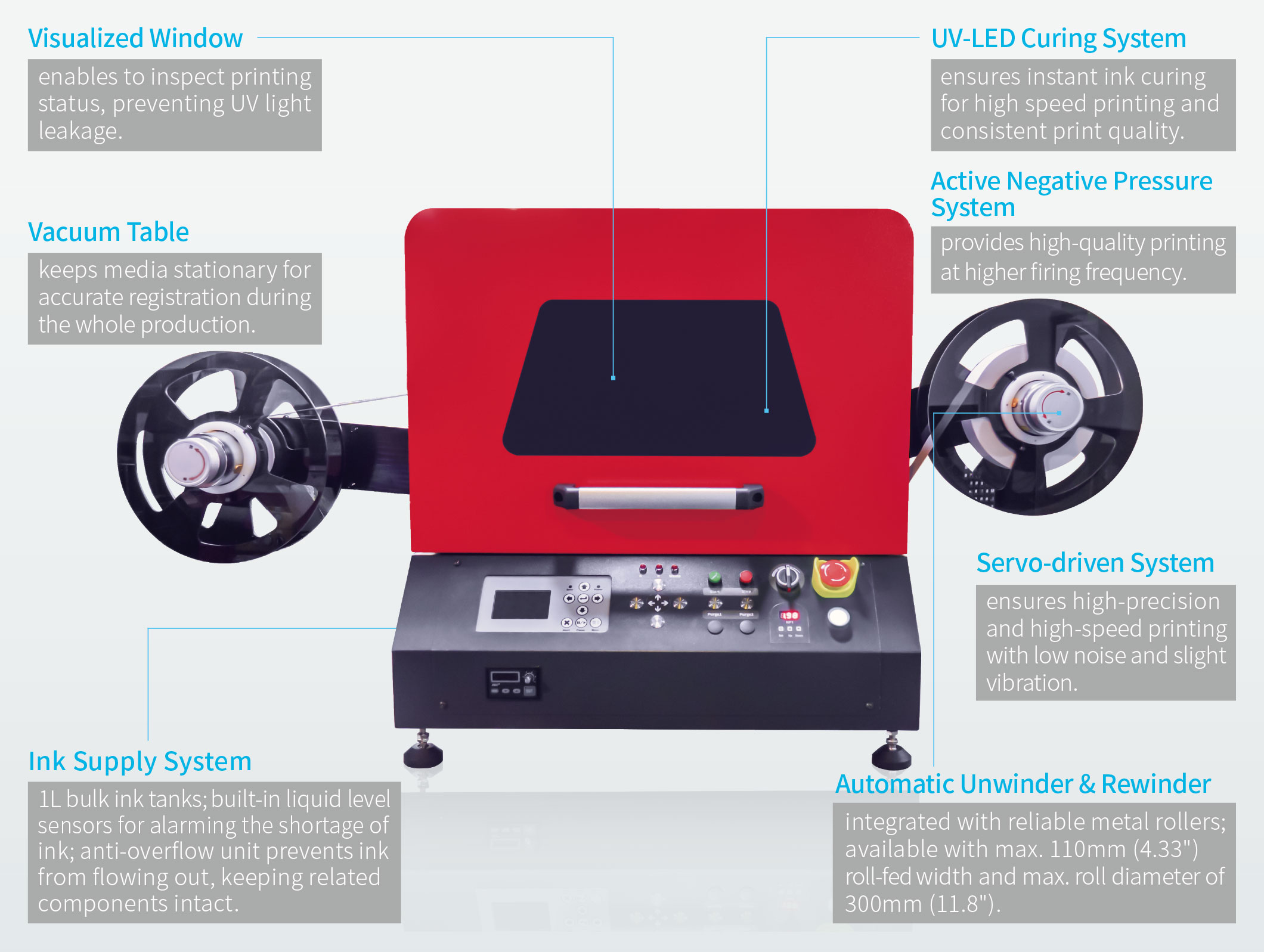

Features

Increase Profitability with Simultaneous Dual-color Printing LZ series offers simultaneous printing of two spot inks, and the ink colors can be customized. It helps you to meet stringent corporate brand requirements while printing various labels, hang tags, garment accessories, foil packaging, corporate logos and recognizing colors.
Expand Applicability with UV-LED Technology With the advanced UV-LED curing technology, LZ series supports a wide range of substrates, outstripping other small-scale water-based label printers and thermal transfer printers.
Promote Flexibility with Adjustable Printing Positions LZ series allows for adjustable variable data printing positions. The target printing positions of variable data usually change with different printing jobs. LZ series enables you to meet the demand of each job.
Optimize Performance with Convenient Maintenance System Adopting drawer-type design, Automatic Print Head Maintenance System allows purging, wiping and capping to promote performance and decrease maintenance expenses.

LZ series supported fonts and barcodes:

Text, numbers, graphics, dates, time, serial numbers and images
True Type and Open Type
1-D Barcodes: EAN 13, EAN 8, Code 39, Code 128, Codabar 2 Widths, GS1 DataBar (RSS-14), Interleaved 2 of 5, UPC-A, and USPS PostNet
2-D Barcodes: PDF417, QR-Code, and Data Matrix

Software

Professional Printer Control Software (PCS Pro) installed on the PC is specifically customized for variable data printing (VDP). It offers a user-friendly interface to interactively control the LZ54 printer, monitor its status, and set its options. With easy operation and maintenance of the printer, PCS Pro greatly enhances print productivity and efficiency.
MagicPage VDP Software offers a simple and flexible Variable Data Printing (VDP) workflow with the online and offline modes. Users can directly print VDP jobs with the MagicPage installed on the Client PC. MagicPage also enables users to design and modify the output templates by extensive editing tools.

Print Technology: Print heads: DOD piezo electric print heads
Print head maintenance: Automatic Print Head Maintenance Module for purging, wiping and capping

Curing System: UV-LED lamp

Ink: Ink type: UV curable ink, dual spot colors
Ink tank volume: 1L

Media: Handling: tight web continuous roll feed
Types: self-adhesive label stock, coated and uncoated paper, writing paper, synthetic paper,
multi-layer adhesive compound paper, etc.
Roll-fed width: max. 110mm (4.33")
Roll diameter: max. 300mm (11.8")
Roll weight: max. 30kg
Core diameter: 76.2mm (3.0")

Weight: 80kg (176lbs)

Environment requirements: Temperature: 16-28°C (61-82°F)
Relative Humidity: 40-60% (Recommended)
Altitude: up to 1000m (3281ft)

Power requirements: Frequency 50/ 60Hz; Voltage 220V±10%; Power 1320W/ 6A

Software and User Interface: Professional Printer Control Software (PCS Pro)
MagicPage VDP Software

Connectivity: Fast Ethernet

	LZ54	LZ75	LZ108
Print head model*	MH5420	KM print head	KY print head
Print head number	2
Print width	54mm (2.13")	75mm (2.95")	108mm (4.25")
Color	Monochrome/ Dual-color
Print resolution	600 × 600dpi，600 × 300dpi
Droplet size	min. 7pl, Variable Droplet Size	min. 3.5pl, Variable Droplet Size	min. 6pl, Variable Droplet Size
Print productivity	30m/ min.

* For print head models or more customized configurations, please feel free to contact us.
